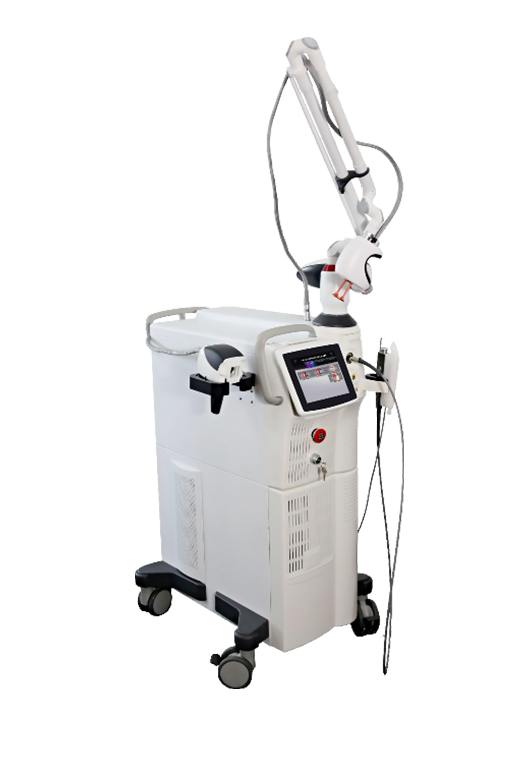

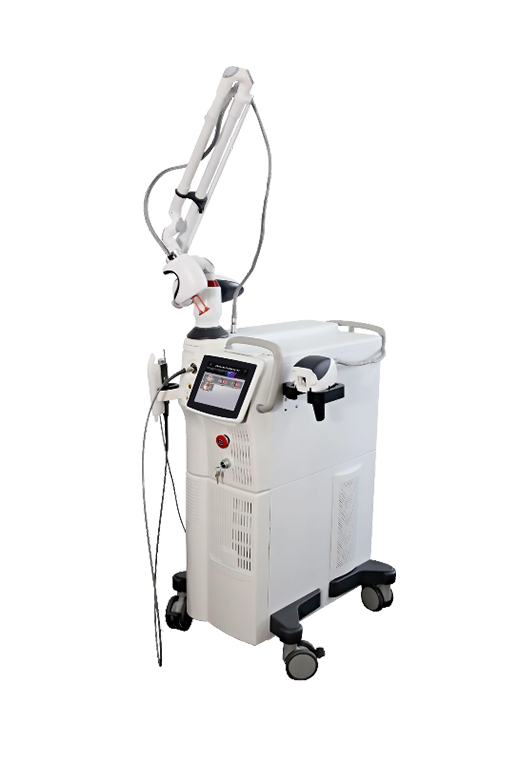

Product Overview
This device integrates two independent laser generators: the 2940nm Er:YAG erbium laser and the 1064nm Nd:YAG neodymium laser, forming an all-in-one dual-light-source aesthetic laser system. The 2940nm wavelength is highly absorbable by skin moisture, enabling precise and minimally invasive vaporization of superficial cuticles, acne pits, scars and superficial pigmented lesions with minimal thermal damage and a short post-procedure recovery period.
The 1064nm laser penetrates through the epidermis to the deep dermis, breaking down deep pigment, alleviating telangiectasia and skin laxity, and it is also applicable for hair removal and tattoo removal. Equipped with four intelligent treatment modes including Smooth, FRAC3, Piano and Superficial, as well as multiple dedicated handpieces, it delivers 4D layered anti-aging and performs a full range of aesthetic treatments such as skin resurfacing, wrinkle reduction and tightening, scar repair and intimate rejuvenation.
Parts and applications
Dual complementary wavelengths for targeted layered treatment
This system adopts dual wavelengths: 2940nm erbium laser plus 1064nm Nd:YAG laser.
The 2940nm laser boasts extremely high water absorption rate, delivering micron-level cold ablation with minimal thermal spread. It greatly lowers risks of scabbing, redness and post-inflammatory hyperpigmentation, and ensures a short recovery period.
The 1064nm laser features deep penetration and barely gets absorbed by epidermal melanin, making it suitable for all skin tones. It can reach the deep dermis. Combined use of the two wavelengths achieves 4D anti-aging covering the epidermis, dermis and subcutaneous layers.
Modular multi-handpiece configuration enables precise treatment for multiple body areas.
Standard accessories include multi-size 2940nm circular treatment tips, fractional handpiece, special intraoral probe and fractional probe for intimate areas.
Matched with long-pulse focused handpiece and fractional handpiece for 1064nm laser, it performs delicate operations on periorbital zones, oral cavity, intimate areas and large body parts, offering flexible and highly accurate treatment.
Advantages of Four Self-developed Patented Treatment Modes
It is equipped with four layered technologies: Smooth, FRAC3, Piano and Superficial, covering the complete 4D anti-aging procedure:
Product Parameters
| Instrument brand | AstraErbium | ||
| Laser type | Erbium and Nd:YAG Laser | ||
| Wavelength | Dual wavelength: 2940nm and 1064nm | ||
| Output power | Nd:YAG Laser: 80WErbium Laser: 20W | ||
| Screen size | 10.4 inches touch color screen | Voltage | 110V~240V, 50/60Hz |
| 1064nm long pulse focusing | 6mm/8mm/10mm | ||
| 2940nm handpieces focusing | 3mm/5mm/7mm | ||
| Mode | Smooth mode, Frac3 mode, Piano mode, Superficial mode | ||
| Frequency | 2940:1-5HZ 1HZ each step1064: 1-5HZ 0.5HZ each step | ||
| Energy | 2940:1-3J/c m21064:1-80Jc m2 | ||
FAQ
This is a professional dual-functional medical aesthetic device that combines the 2940nm ablative erbium laser and the 1064nm long-pulse Nd:YAG laser. It integrates epidermal rejuvenation, dermal anti-aging and private area treatment, serving as an all-round device for light medical aesthetics. Its core advantage lies in the layered skin treatment and synergistic effect of dual wavelengths: the 2940nm wavelength precisely acts on the superficial skin layer, while the 1064nm wavelength penetrates into the dermal layer. A single treatment can simultaneously achieve skin rejuvenation, anti-aging, pigmentation lightening and problematic skin repair. Compared with single-wavelength devices, it delivers more comprehensive effects, adapts to more skin types and features a shorter recovery period.
The device is equipped with 5 handpieces in total:
1. Nd:YAG 1064nm long-pulse focused handpiece (spot sizes: 6mm, 8mm, 10mm)
Applications: Hair removal, skin rejuvenation, improvement of rough skin and other treatments.
2. Nd:YAG 1064nm long-pulse fractional handpiece
Applications: Hair removal, skin rejuvenation, improvement of rough skin and other treatments.
3. Er:YAG 2940nm erbium laser handpiece (spot sizes: 3mm, 5mm, 7mm)
Applications: Oral cavity tightening care, skin rejuvenation, facial lifting, pore refinement and tightening.
4. Er:YAG 2940nm fractional handpiece
Applications: Removal of acne pits, acne marks, scars and stretch marks, repair of various skin scars, as well as skin rejuvenation and facial anti-aging lifting.
5. Er:YAG 2940nm fractional private treatment probe
Applications: Vaginal tightening and vulva contouring.
Specialized treatments by wavelength:
- 2940nm Erbium Laser: Improvement of fine superficial lines, pore refinement, repair of acne pits and marks, fading of superficial scars, removal of hypertrophic age spots and sun spots, rough skin rejuvenation, and superficial stretch mark repair.
- 1064nm Nd:YAG Laser: Fading of dermal pigmentation (chloasma, freckles, dermal pigment deposition), repair of red blood streaks and skin redness, facial lifting and tightening, collagen regeneration and anti-aging, improvement of blackheads and closed comedones, underarm and limb hair removal, and repair of inflammatory pigmentation.
- Dual-wavelength combined treatments: Full-face comprehensive skin rejuvenation, overall renewal of aging skin, integrated repair and anti-aging treatment for problematic skin.
- Skin type adaptation: Suitable for normal, oily, combination and mildly sensitive skin; applicable to skin with pigmentation, rough and aging skin, and skin with acne pits and marks.
- Age group: 18–60 years old. It is especially suitable for people over 25 with early aging symptoms, people over 35 with deep skin laxity and dullness, and middle-aged and elderly people with age spots.
- Precise adaptation: People with mild to moderate skin problems such as enlarged pores, superficial acne pits, fine lines, dullness, redness, superficial pigment deposition and rough skin.
- Pregnant and breastfeeding women, and minors.
- Skin in the acute inflammatory stage (severe redness and swelling, frequent acne outbreaks, ulceration, acute allergic redness).
- People with scar constitution, coagulation disorders and diabetes.
- People who have experienced sun exposure, excessive acid peeling or used hormone ointments within the past month.
- People with facial prostheses or metal implants, or those who have not fully recovered from major recent medical aesthetic surgeries.
- People with skin diseases or immune system diseases.
7-day core post-operative care guidelines:
- First 3 days: Focus on cold compress, hydration and skin repair. Use medical moisturizing cream and repair masks; avoid rubbing or scratching scabs.
- Strict sun protection: Adopt physical sun protection (masks, hats) within 7 days and avoid direct sunlight. Mild sunscreen can be applied after 7 days to prevent pigmentation.
- Simplified skincare routine: Stop using acids, retinol, high-efficiency whitening products and exfoliants to avoid skin irritation.
Post-operative taboos:
- Avoid saunas, steam rooms, strenuous exercise with heavy sweating and swimming within 7 days.
- Do not pick scabs or squeeze the skin by yourself.
- Avoid spicy and irritating food, seafood, alcohol and tobacco, and reduce intake of highly pigmented food.
Mildly sensitive skin is suitable for the treatment. Both dual wavelengths of the device are mild and non-irritating. The 1064nm wavelength can repair skin redness and barrier damage, and improve the condition of sensitive skin.
Skin in the severe sensitive stage (persistent redness, stinging and peeling) needs barrier repair first. The treatment can be performed only after the skin condition stabilizes to avoid increasing skin burden.
The dual wavelengths can be used either in combination or independently. Combined operation is recommended for daily comprehensive skin rejuvenation and full-face anti-aging to improve skin conditions layer by layer. For targeted improvement of single skin problems (such as only pigmentation lightening or acne pit repair), the corresponding single wavelength can be activated independently for precise and efficient treatment, reducing unnecessary skin burden.
