Product Overview
Diode laser hair removal works on the principle of selective photo thermolysis. Laser energy is absorbed by melanin in the hair and converted into heat, targeting the hair follicles and related structures responsible for hair growth to inhibit regrowth and achieve long-term hair reduction.

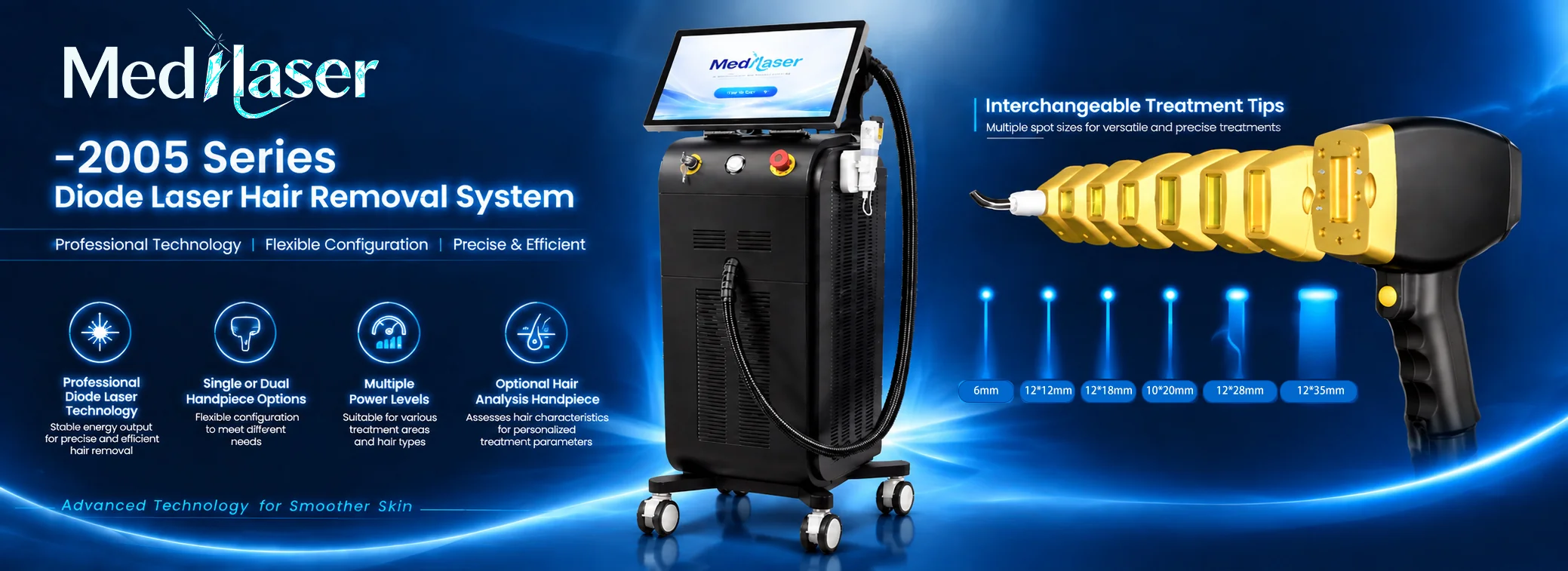

The MediLaser-2005 Series Diode Laser System utilizes professional diode laser technology to deliver stable energy output for precise and efficient hair removal. It supports single- or dual-handpiece configurations with multiple power options to meet the treatment requirements of different practices. An optional professional Hair Analysis Handpiece is available to assist in assessing hair characteristics and provide a reference for personalized treatment parameter selection. Combining performance, flexibility, and operational efficiency, the system is suitable for professional beauty salons, aesthetic clinics, and medical aesthetic centers.

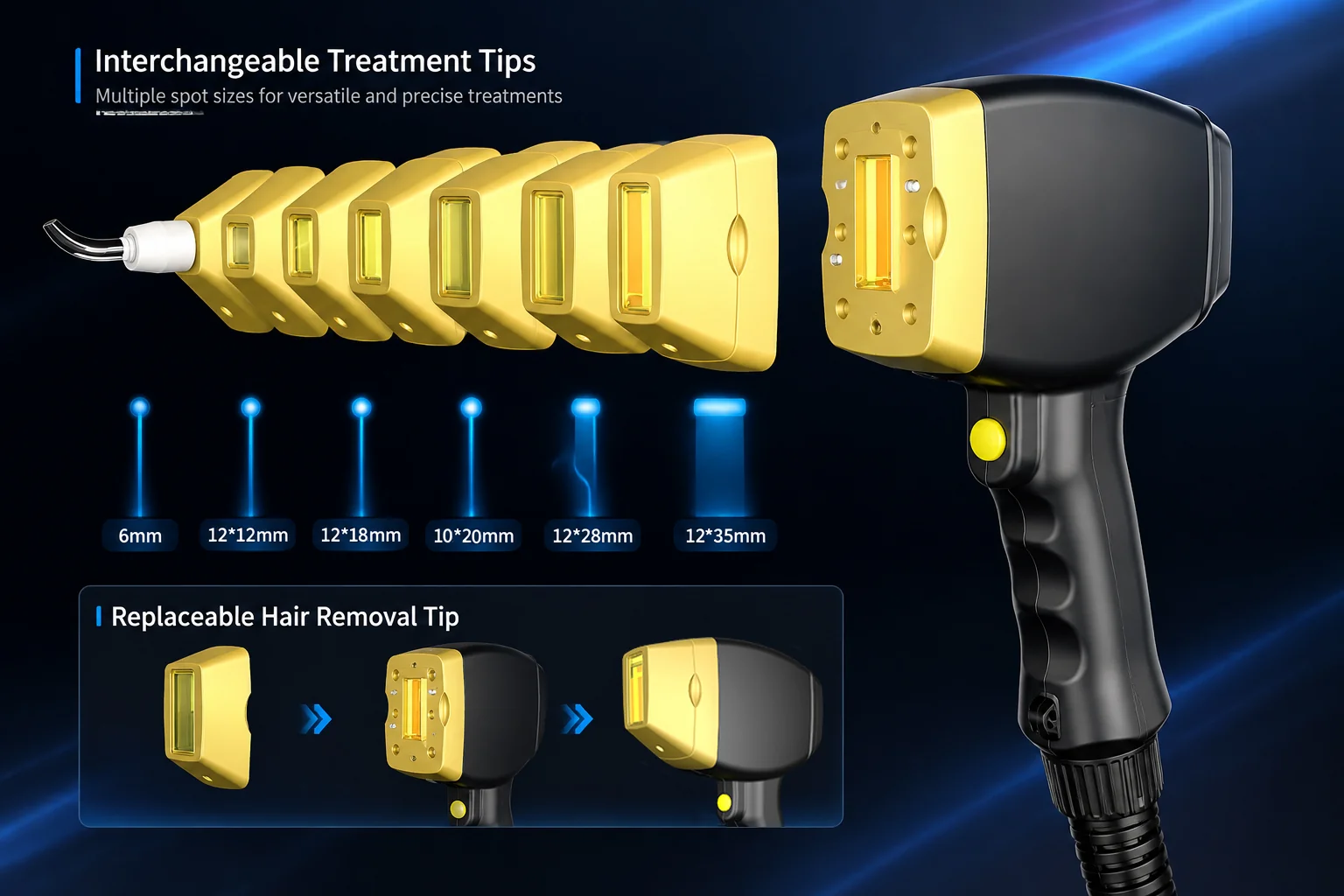

Interchangeable Spot Size Technology
One Handpiece. Six Spot Sizes. Precise Treatment Coverage.
Featuring six interchangeable treatment tips with spot sizes ranging from 6 mm to 12 × 35 mm, the advanced diode laser handpiece enables flexible spot-size selection for different treatment areas. The larger spot supports efficient coverage of extensive areas, while smaller tips facilitate more precise application on delicate, localized areas
Three Intelligent Treatment Modes
Flexible Settings for Every Treatment Level

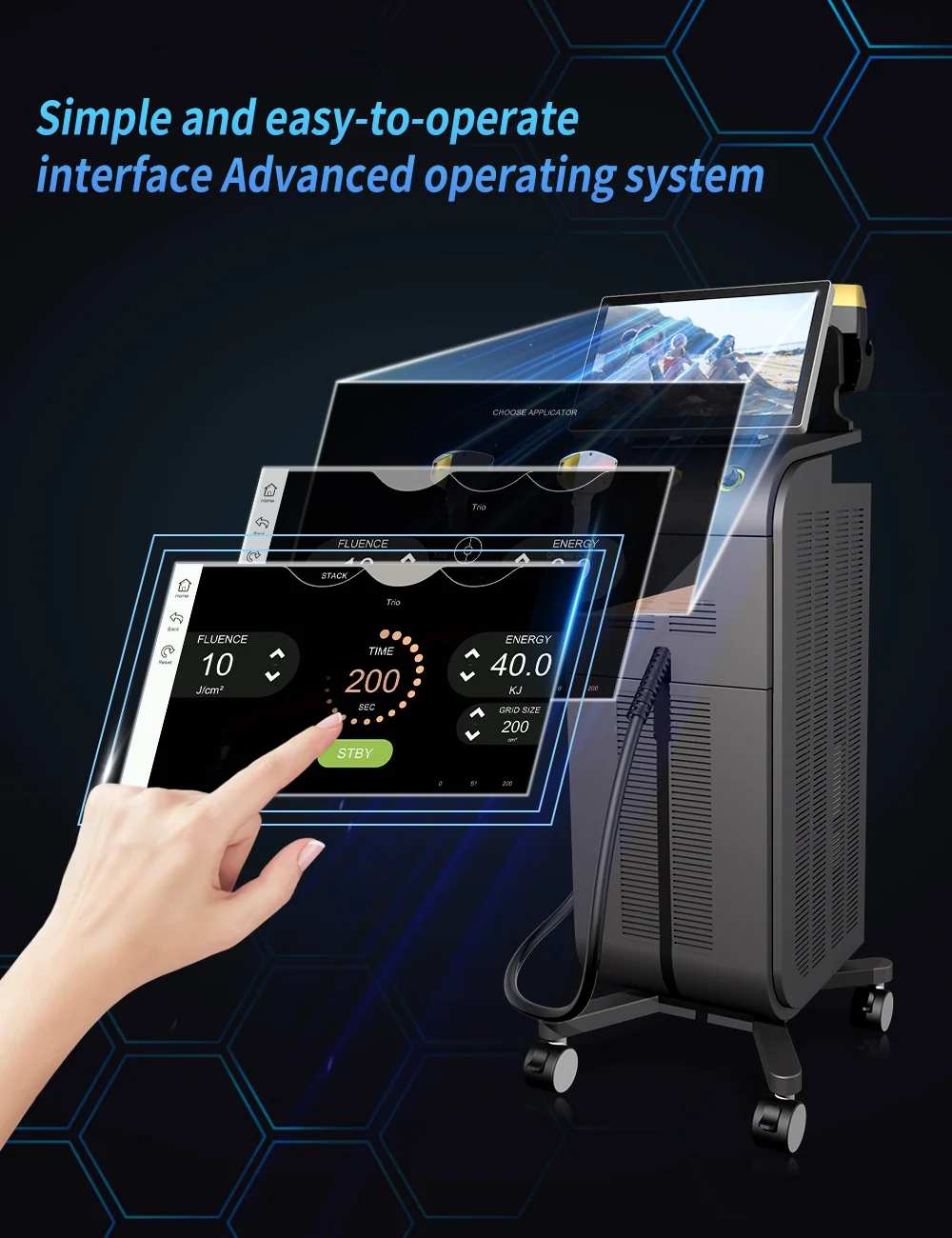

The intuitive touchscreen offers three selectable operating modes—HR, SHR, and SHR STACK—to accommodate different treatment preferences and operating approaches

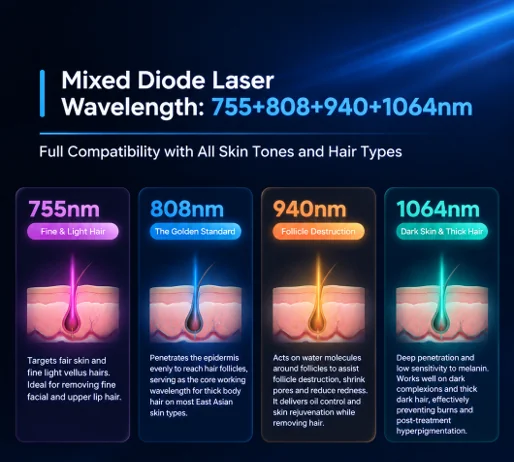

Mixed Diode Laser Wavelength: 755+808+940+1064nm
Full Compatibility with All Skin Tones and Hair Types
This system fits all scenarios: fair, yellow and dark skin; fine downy hair, thick underarm and leg hair, as well as dense chest hair and beards for men.

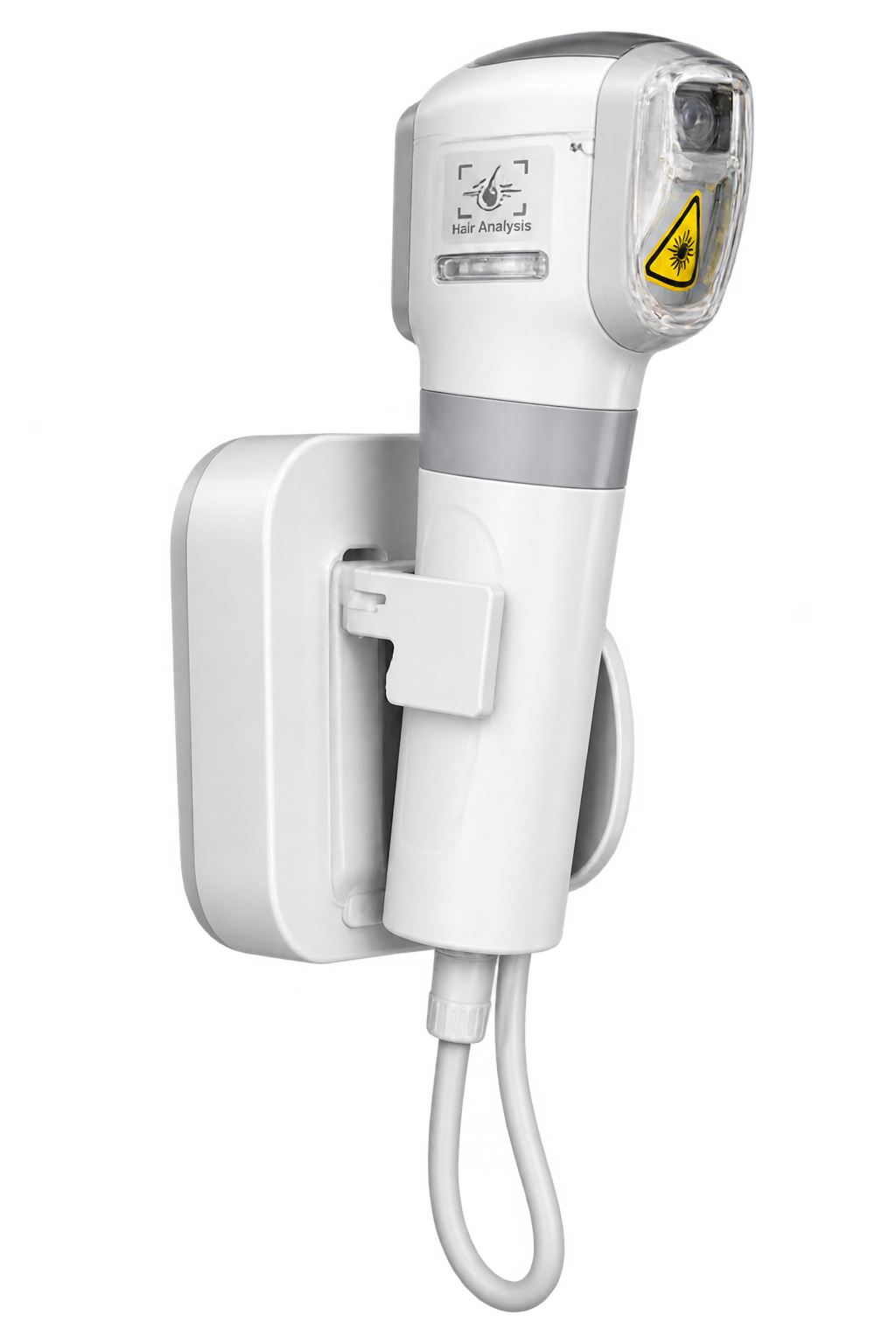

Professional Hair Analysis Handpiece
An optional professional hair analysis handpiece provides a clear view of hair thickness, density, and growth characteristics. It helps assess hair types and treatment areas, providing a more precise reference for parameter selection and supporting personalized treatment plans for enhanced treatment efficiency and professionalism.
MediLaser-2005 Series · 6 Key Selling Points
Product Parameters
All adjustable parameters and ranges depend on the specific system configuration.
| Model | Medilaser:DL2005 | Technology | Diode laser |
| Screen | 15.6 inch 24 color multi-color touch screen | Input voltage | AC 110V/220V 50-60Hz |
| Laser Power | 600W,800W,1200W,1600W,2400W,3000W | Wavelength | 755nm+808nm+940NM+1064nm |
| Max energy | 105J/cm²,120J/cm²,70J/cm²,60J/cm² | Frequency | 1-10Hz |
| Pulse duration | 5-300ms,5-100ms | Crystal temperature | -25℃-0℃ |
| Spot size | 12*12mm²/12*18mm²/10*20mm²/12*28mm²/12*35mm²/Φ6mm² | Cooling system | Semiconductor cooling + air cooling + water cooling |
| Machine size | cm | G.W | 110KG |
FAQ
The MediLaser-2005 Series is a professional diode laser hair removal system designed for efficient and precise hair reduction.
The system can be configured with 755nm, 808nm, 940nm, and 1064nm wavelengths to accommodate different skin tones and hair types.
Yes. The system supports single- or dual-handpiece configurations, providing flexible options for different treatment requirements.
It supports interchangeable treatment tips, including 6mm, 12×12mm, 12×18mm, 10×20mm, 12×28mm, and 12×35mm, depending on the configuration.
Yes. An optional Hair Analysis Handpiece can help assess hair characteristics and provide reference information for personalized treatment parameter selection.
It is suitable for professional beauty salons, clinics, and medical aesthetic institutions seeking flexible configuration, efficient treatments, and professional hair removal performance.
